Power distribution boards play a pivotal role in keeping electrical systems safe, reliable, and energy efficient across industrial, commercial, and large residential installations. Their design, components, and configuration directly influence how well power is controlled, protected, and optimized throughout a facility.

Introduction

A power distribution board (PDB) acts as the central hub that receives electrical power from the main supply and routes it safely to various branch circuits and loads. It combines switching, protection, and monitoring elements in a single enclosure, allowing engineers and maintenance teams to control power from one organized location. By doing so, a well-engineered PDB supports both electrical safety and operational efficiency throughout the system.

What Power Distribution Boards Do

Inside a typical power distribution board, the main incoming supply feeds busbars, which then distribute power to multiple outgoing feeders protected by circuit breakers or fuses. Each outgoing circuit can be dedicated to a specific area, machine, or sub-panel, enabling granular control and isolation. This structured distribution prevents random or ad‑hoc wiring, reduces complexity, and makes it easier to trace circuits during installation, commissioning, or troubleshooting.

PDBs also differentiate between main distribution and sub‑distribution levels. The main board handles bulk incoming power and high current ratings, while sub‑distribution boards supply localized loads such as production lines, MCC panels, or building floors. This hierarchy supports better load management, shorter cable runs, and improved voltage regulation at the point of use.

How PDBs Enhance Safety

One of the core safety functions of a power distribution board is overload and short‑circuit protection. By using correctly rated circuit breakers, fuses, and protective devices, the board ensures that any fault current is quickly interrupted before cables overheat, insulation degrades, or fire hazards arise. Coordinated protection settings help ensure that only the faulty branch is disconnected, keeping the rest of the system energized and minimizing downtime.

PDBs also improve personnel safety by providing clear circuit segregation and safe isolation points. Proper earthing, neutral bars, and protective earth connections help safely divert fault currents, reducing the risk of electric shock to operators and maintenance staff. Additional features such as shrouded terminals, interlocks, and lockout/tagout provisions further support safe working practices during inspection and repair.

How PDBs Improve Efficiency

A well‑designed power distribution board contributes significantly to electrical efficiency by balancing loads across phases and circuits. When loads are properly distributed, conductors and transformers operate closer to their optimal range, reducing energy losses, avoiding unnecessary heating, and improving power quality. Balanced loading also helps minimize neutral currents and voltage imbalance, which can otherwise harm sensitive equipment and shorten component life.

Modern PDBs can incorporate metering, monitoring, and communication devices that provide real‑time data on current, voltage, power factor, and energy consumption. This visibility enables energy audits, detection of abnormal consumption, and identification of under‑ or over‑loaded circuits. Integrating these boards with building or plant management systems allows facilities to optimize operating schedules, detect issues early, and support broader energy‑efficiency initiatives.

Applications in Industry and Buildings

In industrial plants, PDBs supply heavy machinery, drives, control panels, and auxiliary systems, often in harsh environments where reliability is critical. Rugged enclosures, high short‑circuit ratings, and flexible configurations allow boards to withstand mechanical, thermal, and electrical stress while still offering easy access for maintenance. In data centers, they supply UPS systems, racks, and cooling infrastructure, where even momentary interruptions can be costly.

Commercial buildings rely on distribution boards to power HVAC systems, lifts, lighting, IT infrastructure, and life‑safety circuits. Here, selectivity and discrimination between protective devices ensure that faults in non‑critical circuits do not affect emergency systems. Modular and scalable designs make it easier to add new loads or retrofit energy‑efficient equipment without replacing the entire distribution system.

Choosing the Right Power Distribution Board

Selecting an appropriate PDB begins with understanding the load profile, including maximum demand, diversity factors, and future expansion plans. Key parameters include busbar current rating, short‑circuit withstand capacity, number and type of outgoing feeders, and the required form of separation or compartmentalization. The enclosure’s ingress protection (IP) rating, material, and mounting arrangement must align with environmental conditions, such as dust, moisture, temperature, and mechanical impact.

Compliance with relevant standards and certifications is essential to ensure both safety and reliability. Attention should also be given to component quality—such as copper or aluminum busbars, high‑quality breakers, and reliable terminals—and to internal layout for good heat dissipation and maintainability. A board designed with clear labeling, cable routing, and adequate space reduces installation time and simplifies future upgrades.

Conclusion and Product Highlight

Well‑designed power distribution boards are fundamental to enhancing electrical safety and efficiency, protecting equipment from faults, simplifying maintenance, and enabling better control over energy use across industrial and commercial environments. They support safe operation by isolating faulty circuits quickly and efficiently, while contributing to lower operating costs through proper load management and improved system reliability.

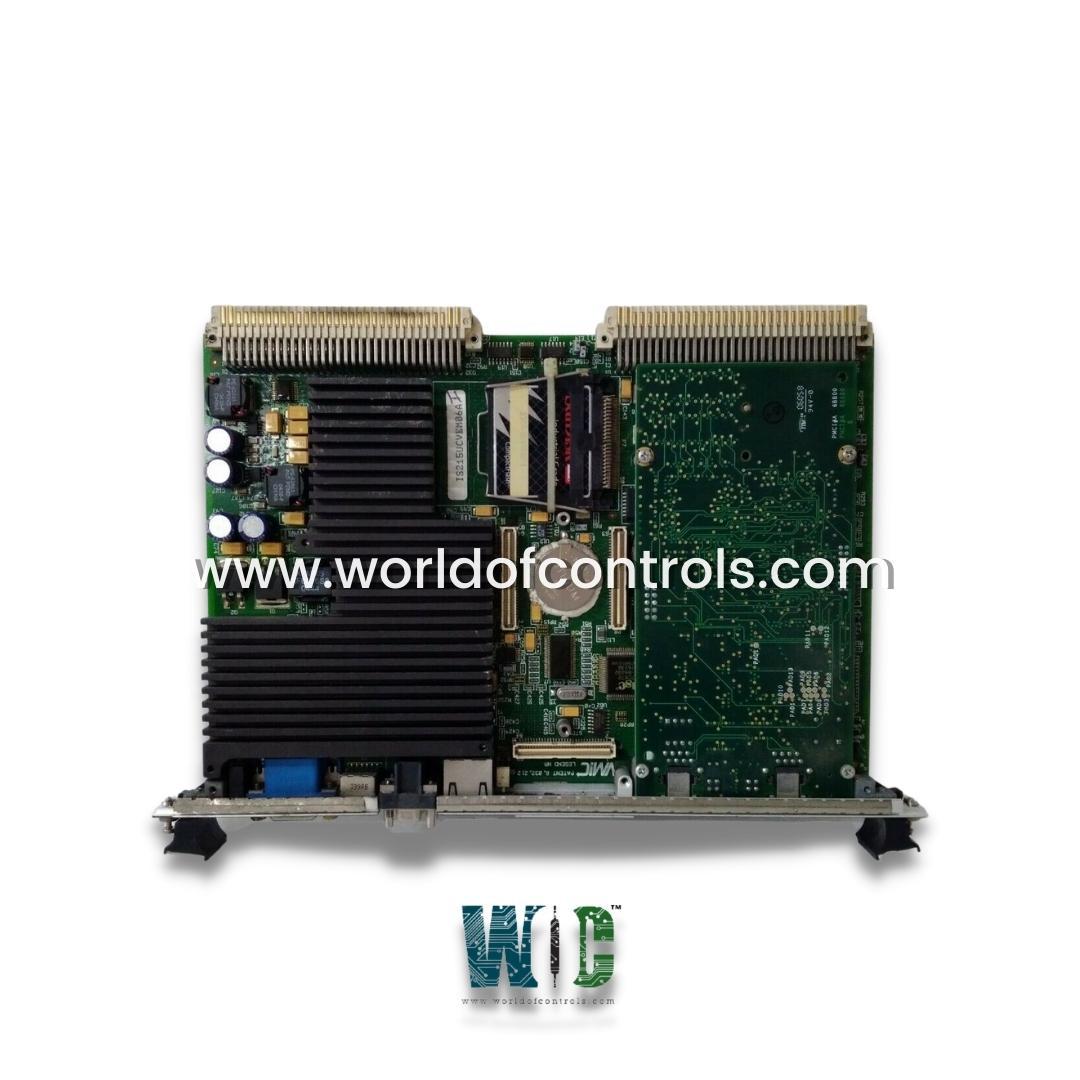

For applications that require a robust and engineered solution, the IS200JPDSG1AEC power distribution board offers a dedicated platform for reliable power routing and protection in demanding systems. This board is available through World of Controls, a specialized supplier focused on high‑quality industrial control and distribution hardware. Choosing such purpose‑built boards from a knowledgeable supplier helps ensure that safety, performance, and long‑term maintainability are built into the heart of the electrical system.
